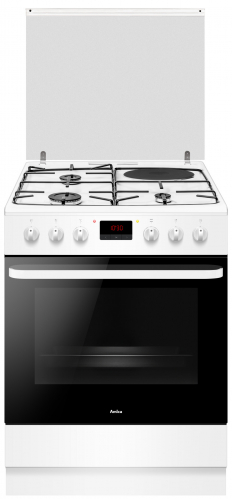

ACM3504B
6022ME2.38eEHiZpTaKDN(W)
-
FEATURES
-
Bottom heat:
1100 W -
Cleaning system:
Catalytic -
Defrosting:
yes
-
EasyClean enamel:
Yes -
ECO top and bottom heat + fan + grill:
3500W -
Even Baking:
Yes
-
Gas spark ignition:
In Knobs -
Front left heating zone dimension (cm):
9.4 -
Left front gas burner energy effciency:
55.5 %
-
Front left heating zone power rating (kW):
3 -
Left front zone type FL:
Gas -
Rear left heating zone dimension (cm):
6.9
-
Left rear gas burner energy effciency:
55.5 % -
Rear left heating zone power rating (kW):
1.75 -
Left rear zone type RL:
Gas
-
Additional function - Independent light:
Yes -
Pan supports quantity:
2 -
Number of oven cooking functions:
9
-
Number of power levels:
6 -
Preheating:
4 minutes -
Preheat time until 180°C:
5 '
-
Rapid preheating in functions zone:
3500W -
Front right heating zone dimension (cm):
4.6 -
Right front gas burner energy effciency:
55.5 %
-
Front right heating zone power rating (kW):
1 -
Right front zone type FR:
Gas -
Rear right heating zone dimension (cm):
18
-
Right rear zone energy consumption RR:
194.5 Wh/kg -
Rear right heating zone power rating (kW):
1.2 -
Right rear zone type RR:
Electric
-
Defrosting:
45W -
Grill:
1500 W -
Temperature limiter:
Yes
-
Top and bottom heat + fan:
2000 W -
Top heat + bottom heat (conventional):
2000 W -
Top heat + grill + fan:
2400 W
-
Hob energy consumption:
194.5 Wh/kg -
Gas hob energy effciency:
55.5 % -
Type of heating:
Semi-multi
-
Control type:
By oven
-
Bottom heat:
-
Equipment
-
Cavity colour:
Black -
Door opening system:
Standard -
Reflex glass:
No reflex
-
Cavity colour:
-
Technical data
-
Bottom heater:
1100 W -
Connection cable colour:
White -
Connection type:
3N~400 V
-
Display color:
red -
EEI:
95.1 -
Energy consumption for conventional mode:
0.99 kWh
-
Energy consumption for fan-forced mode:
0.78 kWh -
Energy source:
Gas/Electricity -
Flame safety valve:
Yes
-
Pan support type:
Enamel Steel -
Grill power:
1500 W -
Gross volume:
0.4327 m³
-
Total power of hob:
1.2 kW -
Lighting:
25 W -
Max temperature outside on oven door glass:
72 °C
-
Net depth:
600 mm -
Net height:
850 mm -
Net weight:
44.65 kg
-
Net width:
600 mm -
Number of baking levels:
5 -
Number of cavities:
1
-
Number of heating elements:
4 -
Net oven capacity - main cavity:
65 l -
Type of plug or cable:
France
-
Connection cable:
Power cord without plug -
Connection cable length:
130 cm -
Total power of product:
4.7 kW
-
Standby power consumption:
< 1 W -
Top heat + grill (supergrill):
2400 W -
Total gas consumption:
418.44 g/h
-
Total gas power of product:
5.75 kW -
Total gas power of hob:
5.75 kW -
Hob type:
Mixed
-
Top heater:
900 W
-
